Affected by thunderstorms, photovoltaic energy storage equipment is often damaged by lightning strikes. After the equipment is damaged by lightning strikes, the repair cost is extremely high. The ceramic gas discharge tube (GDT) SC3E5 series launched by SOCAY Electronics has ultra-low capacitance to help It ensures high transmission speed in communication applications, provides high reliability and high surge current, and can respond quickly to rapidly rising transient voltages to enhance the protection of sensitive circuits. The surface mount design optimizes the use of circuit board space and facilitates SMT operations.
The SC3E5 series gas discharge tubes are widely suitable for a variety of applications, such as RS232, RS485 and Ethernet applications.
Features:
①Surface mount design optimizes the use of circuit board space
②Respond quickly to rapidly rising transient voltages to enhance protection of sensitive circuits
③The capacitance is less than 1.5pF, which improves the transmission speed in broadband applications
④Ultra-low insertion loss helps protect signal integrity
Typical application circuit:

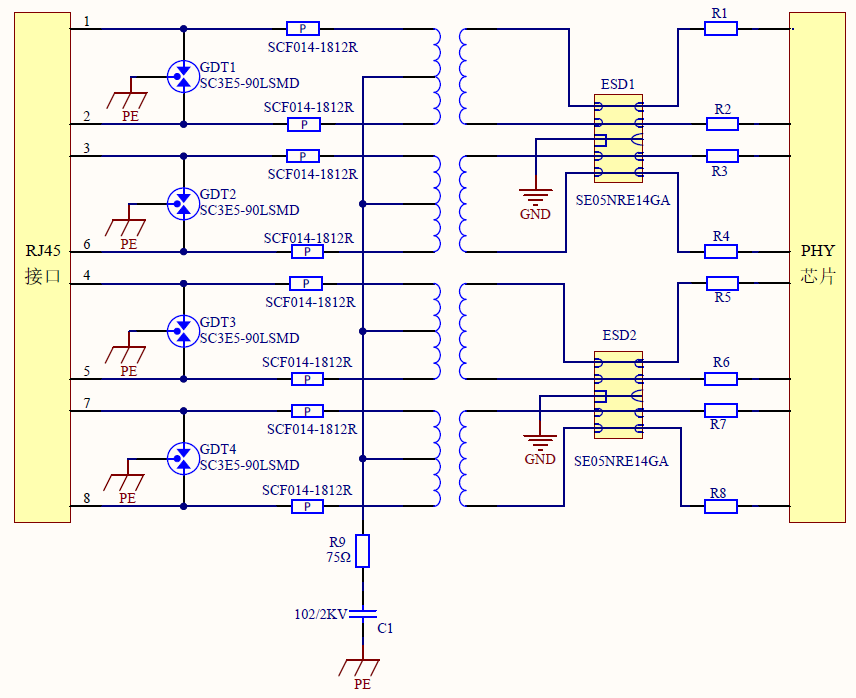

Ethernet application solution:

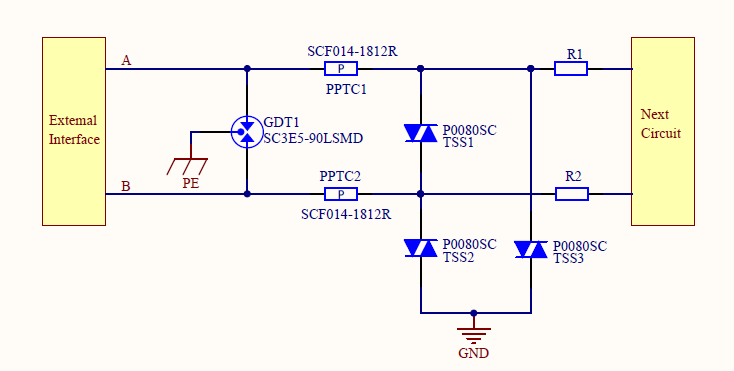

RS485 application solution:
RS232 application solution:
